Mini Refining Machine

 Mini Refining Machine

Video of Mini Refining Machine


Mini Refining Machine Introduction
There are still some impurities such as phospholipids, FFA, pigment, odor, etc. after the process of oil seed press , that is why the Refining process is necessary in a complete oil pressing line. 0.5 ton refining equipment suitable for small scale oil plants. The material of the refining equipment is 304 stainless steel. The capacity is 0.5 ton per day.

The features of oil refining equipment:
※ Oil Refining with electrical control box and heating system.
※ High automatic operation and reliable performance.
※ The main part of the machine is made of alloy steel and stainless steel.
※ Wide application: various kinds of oil can be refined by oil refining machines such as sunflower seeds oil, peanut oil, coconut oil, soybean oil, palm kernel oil, rapeseed oil, etc.
※ The capacity of edible oil refining can be customized. The oil refining plant can work independently or together with complete oil production line.

Mini Refining Machine

Mini Refining Machine

Oil refining is a collective name for a series of processes to remove solid impurities, free fatty acids, phospholipids, gums, waxes, pigments, odors, and other impurities contained in vegetable oils. The Main Steps of Edible Oil Refining process is composed the following steps which are Crude Oil Degumming , Deacidification, Dephosphorization , Vacuum dehydration, Fine filtration .

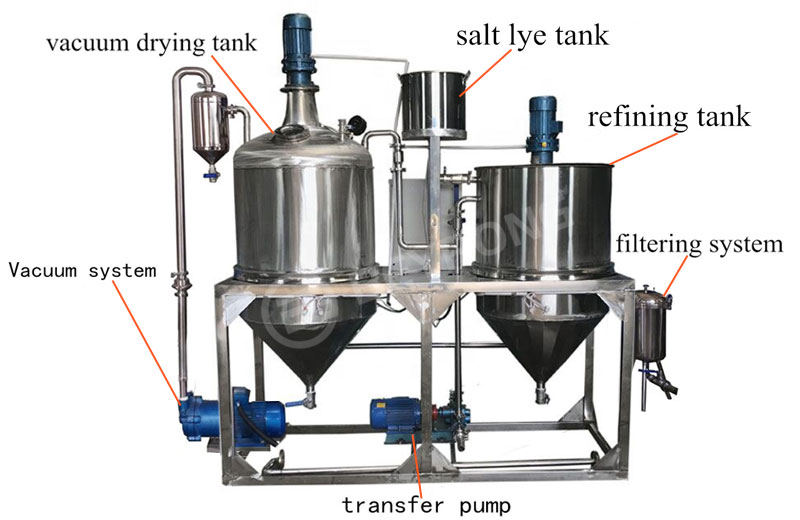

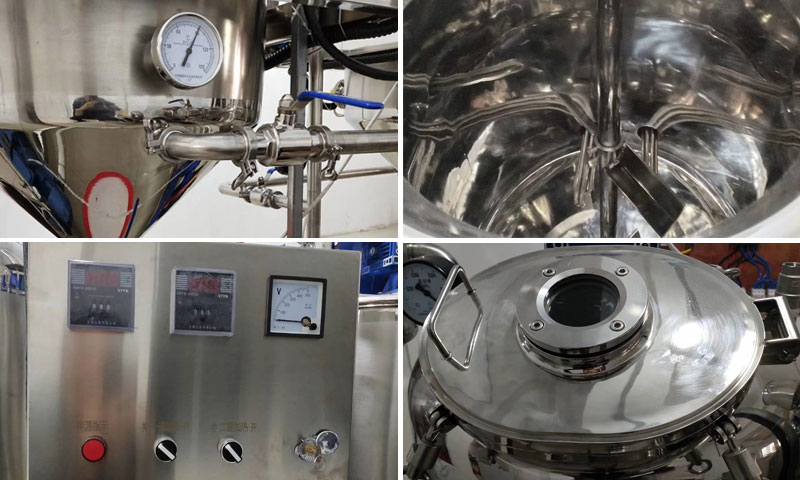

 Mini Refining Details Show

Mini Refining Machine

Mini Refining Machine Technical Data

500kg Oil Refining Machine
Capacity 500KG/DAY Tank Thickness 4mm
Heating Power 12KW Tank Diameter 700mm
Mixing Motor Power 1.3KW Tank Volume 300L
Vacuum Pump Power 1.5KW Weight 600KG
Voltage 380V Size 2500*1000*2300mm

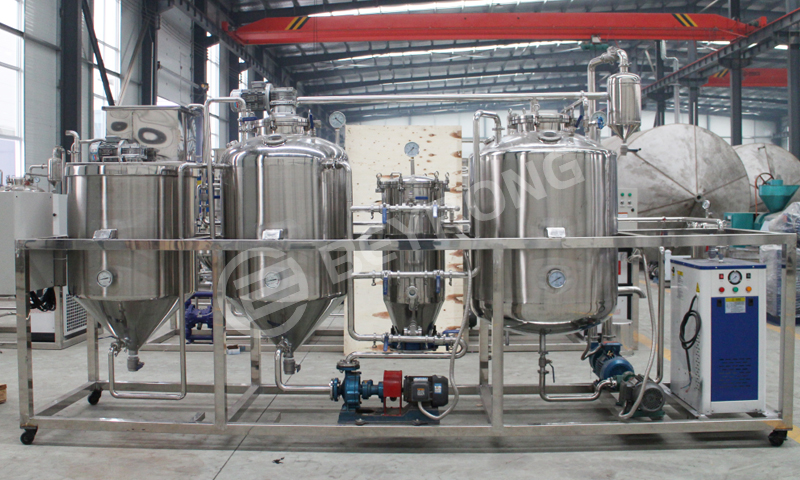

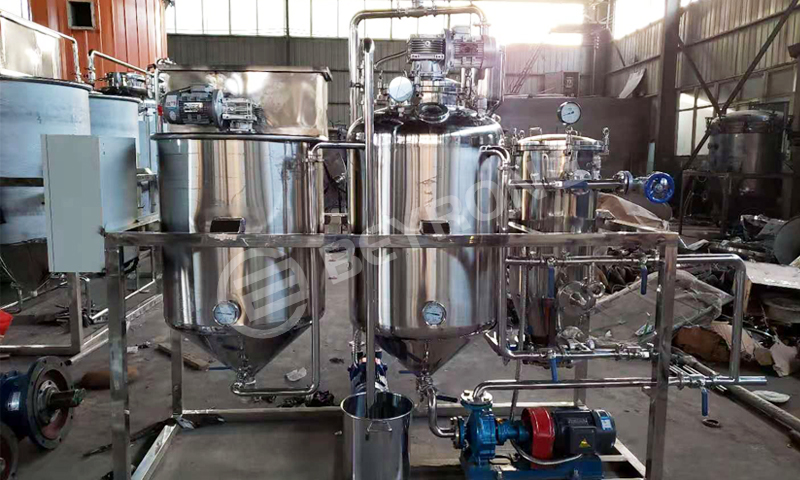

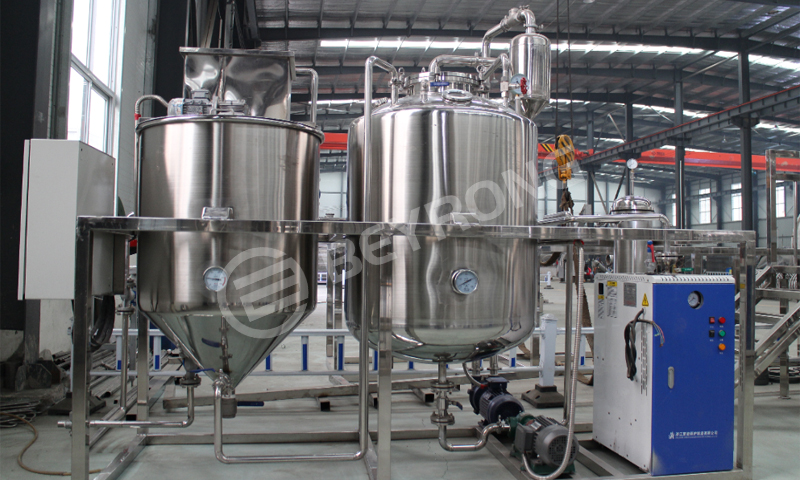

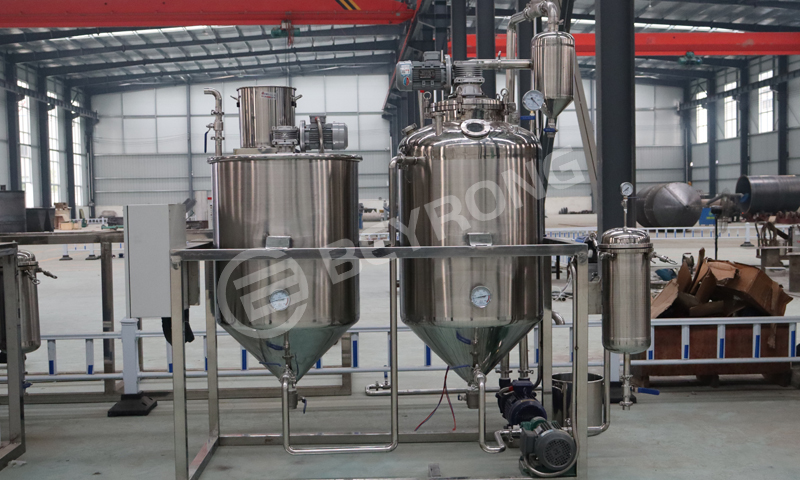

Customized Mini Refine Machine

Function:Degumming,Deacidification,Dehydration,Fine Filtration


Function:Degumming,Deacidifying and Deodorizing


Function:Degumming,Deacidification and Decolorization


Function:Degumming,Deacidification,Decolorization and Deodorization

Product: Mini Refining Machine
